공기중의 미세먼지(Fine Dust)와 금속가공 용접 등에서 발생하는 fume은 인체에 유해한 물질을 함유하여 호흡기질환, 알레르기반응, 천식, 폐렴등을 유발함.
㈜에어컨트롤엔지니어링은 발생원에 대한 자료를 근거로 CFD(전산유체시뮬레이션)를 수행하여 적합한 후드설계와 필요한 풍량을 결정하며, 나노필터를 이용한 여과집진기술 및 고효율 전기집진기 등을 이용하여 Dust와 Fume을 적합하게 처리합니다.
ACE Fume & Dust Solution & Technology
-
-

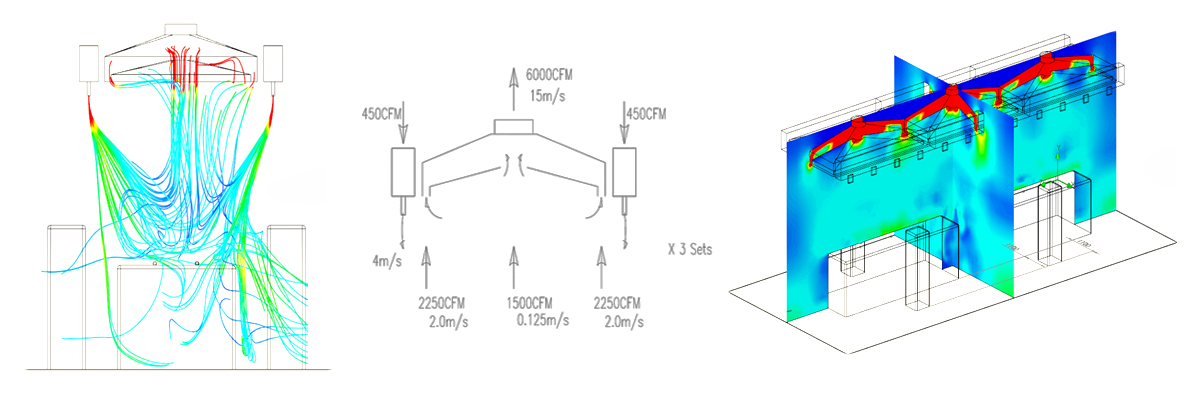

Double Canopy hood & Side jet air curtain
-
- Uniform Flow
- Push & Pull
- Negative pressure system
-
-
Double Canopy hood & Side jet air curtain
-
- High efficient HEPA & NANO filter
-
-
Double Canopy hood & Side jet air curtain
-
- Heat Exchange & Circulation system

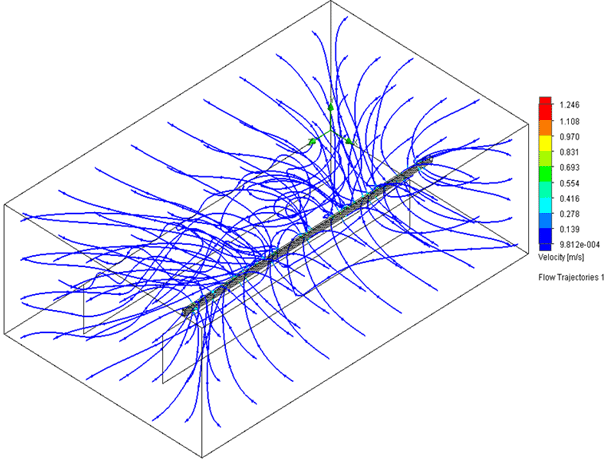

CFD (전산유체역학 컴퓨터 시뮬레이션)
Robot welding Line
Double Canopy hood & Side jet air curtain
- 용접Fume을 원활히 제어하는 Double Canopy & Air Curtain Exhaust system 구현

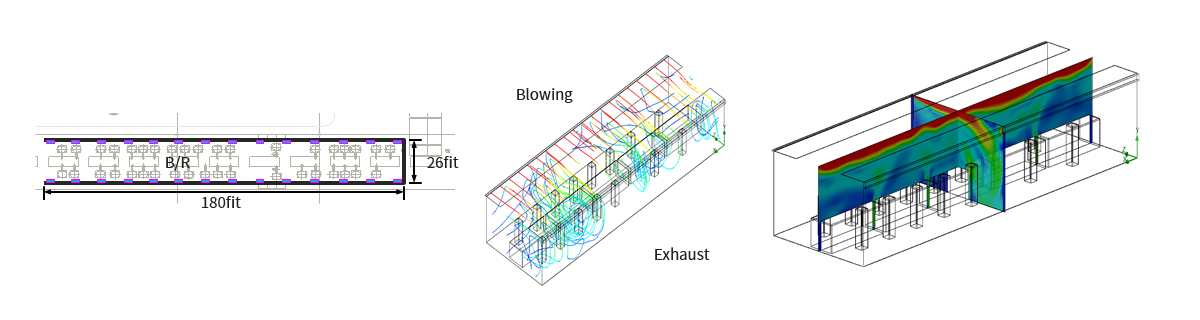

- 미국 현대 자동차 로봇 용접라인 HMMA Alabama, USA.
Push & Pull Capture system on Long distance by Entrainment effect
- 용접Fume을 원활히 제어하는 Double Canopy & Air Curtain Exhaust system 구현
TRAPPING VENTILATION

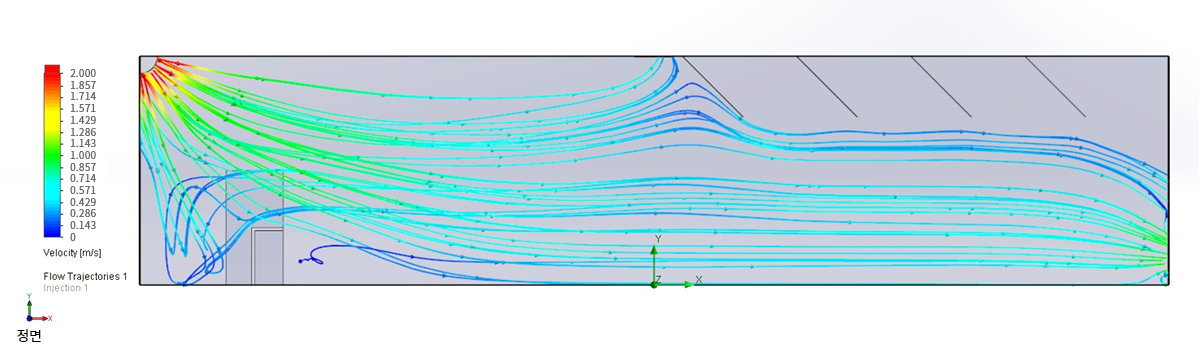

- Flow Trajectory 분석을 통해 공간의 전체환기를 계획하고 제어함.
경기도실내사격장 전산유체시뮬레이션
Shooting range
1 |
Shooting launcher |

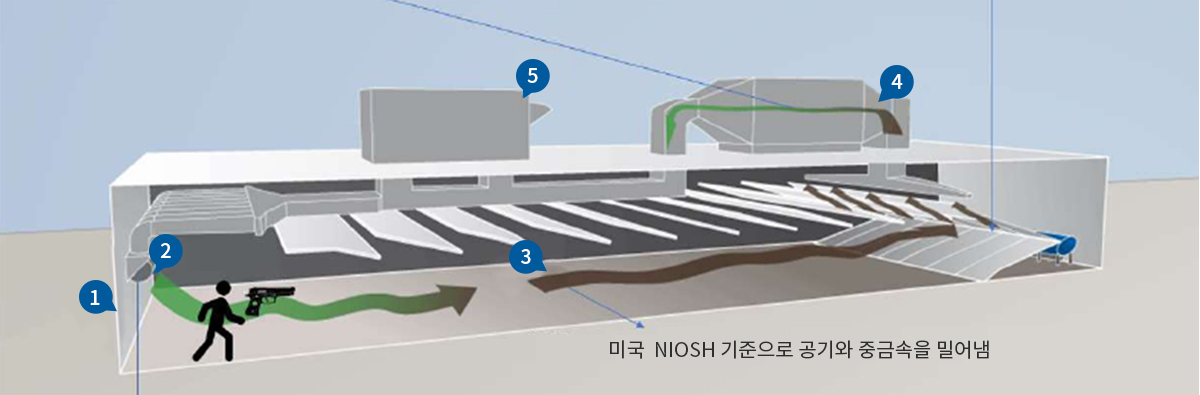

사격 시 (산화)납 중금속 분진, 가스 분출 |
2 |
Uniform flow |
사격자가 (산화)납에 노출되지 않도록 등속기류 생성 |
3 |
Appropriate Velocity |
적합한 배기 지점 및 풍속/풍압/풍량 설계 |
4 |
Filtration Technology |
HEPA/NANO FILTER |
5 |
Energy Efficiency |
Heat exchange and Circulation system |

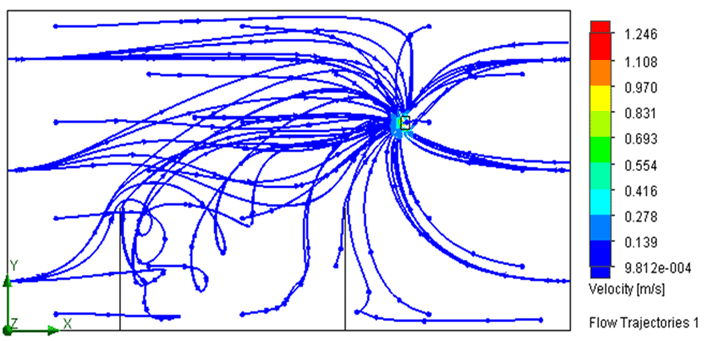

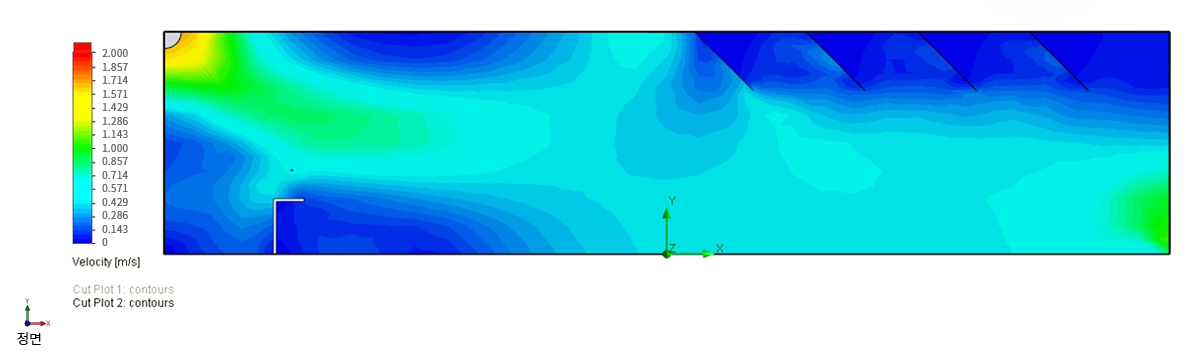

Computational Fluid Dynamics (Side-1)
경기도 종합 사격장

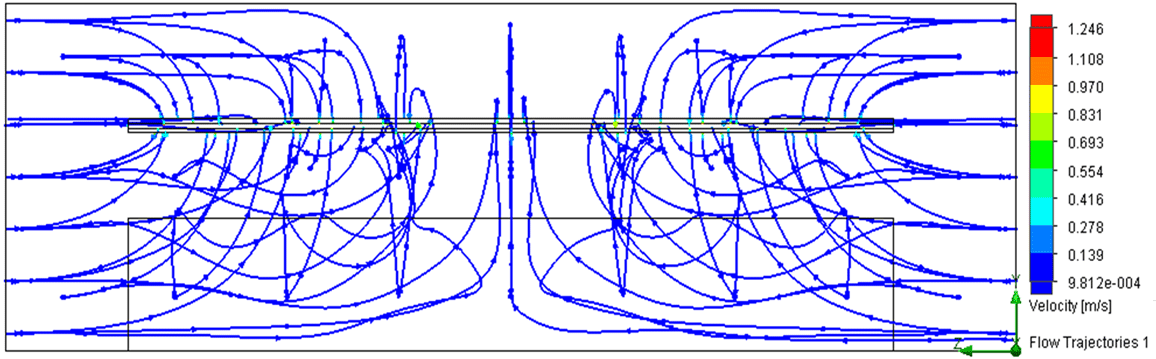

Computational Fluid Dynamics (side-2)
경기도 종합 사격장
High-efficient NANO FILTER

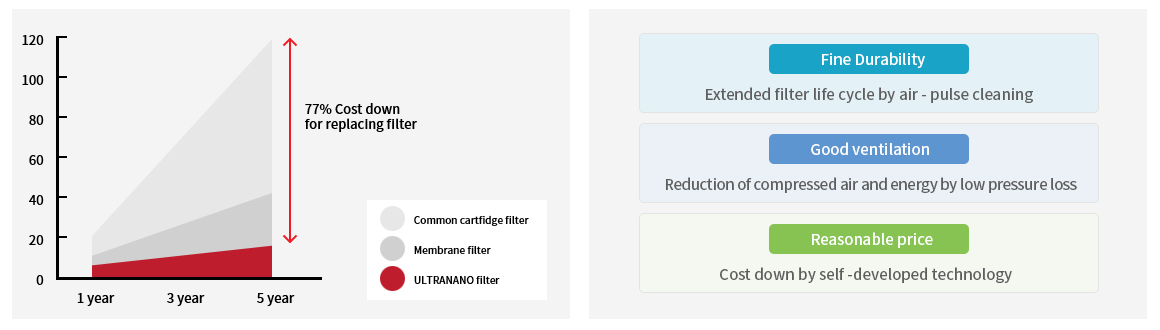

Welding fume is small and fine, so the general filter is easy to be clogged. The special filter coated with Nano fiber removes the dust 99% at 0.3 microns. In addition, the Nano Filter has superior air permeability and has superior dust removal efficiency and longer service life than general filters.
Features

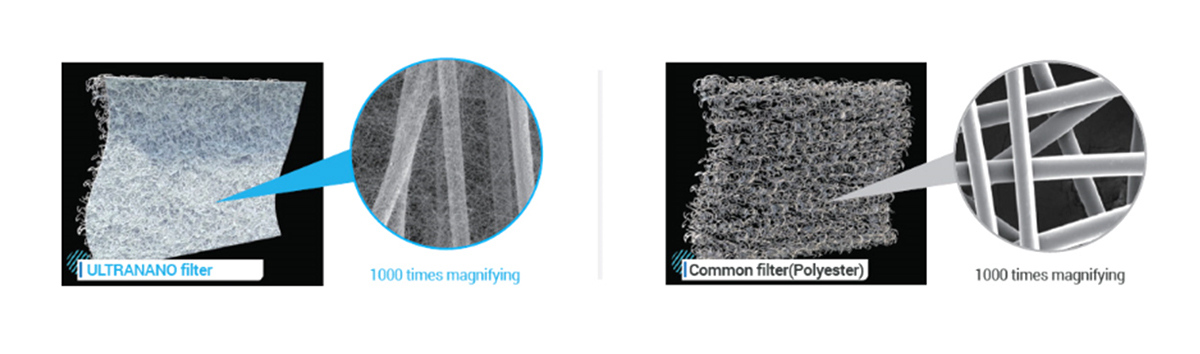

- The Ultra Nano filter is coatede with one-billionth meter super fine nano fiber.
- The air hole of it is 20 times smaller and closer than common polyester fiter.
- By Surface filtration, the dusts are not stuck in the hole of fiber unlike depth filtration.
- The dusts are easy to be off when air-pulsing, so the life cycle is longer then common filter.
The efficiency of Ultra Nano : Effciency of filtration
Type |
PE filter(KOLON L227) |
Imported NANO filter |
Ultra Nano filter |
Particle size |
0.3~0.5㎛ |
0.3~1㎛ |
0.3~0.5㎛ |
Filtering rate |
86.2% |
85~95% |
99.1% |

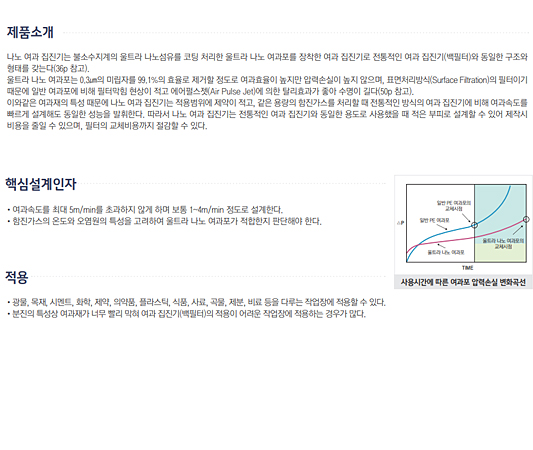

Effectiveness

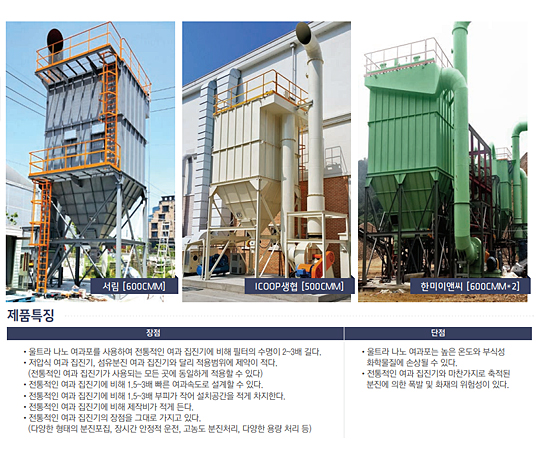

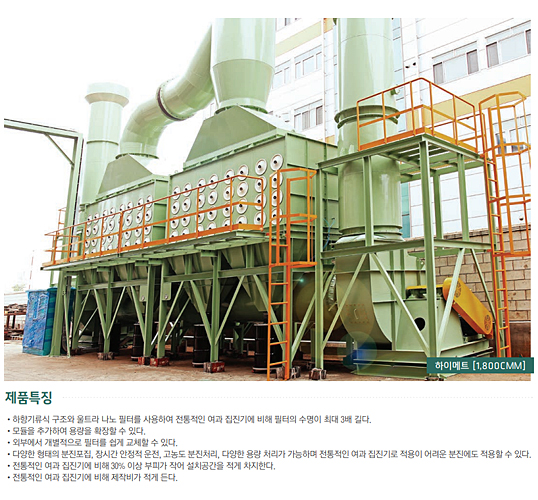

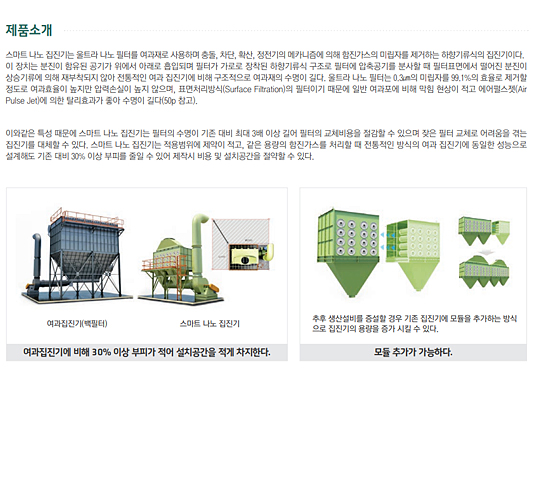

적용집진시설
